Honda Civic Service Manual: Carpet Removal and Installation (4-door A/T)

Honda Civic Service Manual / Powertrain / Transmission/Transaxle / Automatic / Carpet Removal and Installation (4-door A/T)

847100

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.


1. Battery Terminal (SRS) - Disconnection


1.

Make sure the ignition switch is in LOCK (0).


2.

Disconnect and isolate the negative cable with the battery sensor (A) from the battery.


NOTE:

Always disconnect the negative side first.

To protect the battery sensor connector (B) from damage, do not hold it when removing the negative terminal.

Do not disconnect the battery sensor from the negative terminal (C).


3.

Disconnect the positive cable (D) from the battery.


4.

Wait at least 3 minutes before starting work.


2. Both Front Seat Belt Lower Anchor Bolts


1.

Remove the anchor cover (A).


2.

The driver's seat is shown; repeat on the passenger's seat.



3.

Remove the lower anchor bolt (A).


4.

The driver's seat is shown; repeat on the passenger's seat.


3. Left Front Seat Belt Lower Anchor

unn-mmlmlzaiu.m:n.5



1.

Prepare a sheet of cardboard which is 2-2.5 mm (0.08-0.098 in) thick.


NOTE: If there is no suitable cardboard, put some seats of thin paper together until they will be required thick.


2.

Make a jig (A) from the prepared cardboard (B).



3.

Slide the front seat forward fully.


4.

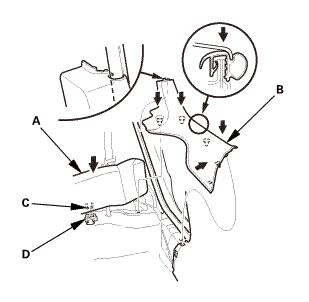

Slowly insert the jig (A) into holes (B) in the back of the lap connector cover (C) to release the sublatch spring (D). Be sure the jig is inserted vertically.


5.

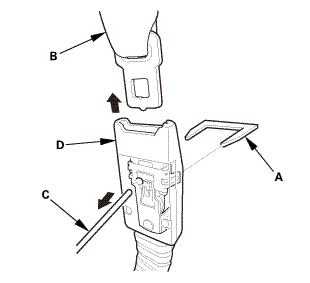

Leave the jig (A) set in the lap connector cover (B) to keep the sublatch spring (C) open. Carefully insert the tip of a small screwdriver (D) into the hole in the lap connector cover, and unlock the lap connector by pushing in on the screwdriver.



6.

Remove the jig (A).


7.

While pulling the front seat belt (B) upward, remove the screwdriver (C). As soon as you remove the screwdriver from the lap connector (D), the anchor connector will come off the lap connector.


4. Both Front Seats


1.

Remove both seat track end covers (A).


2.

The driver's seat is shown; repeat on the passenger's seat.


Front side


Rear side


3.

Remove the seat mounting bolts (A).


4.

The driver's seat is shown; repeat on the passenger's seat.


Power seat


Manual seat


5.

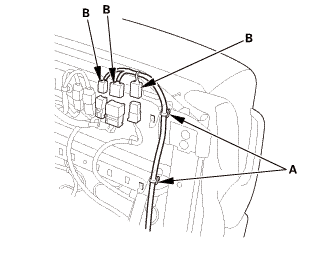

Disconnect the connectors (A).


6.

Detach the harness clips (B).


7.

The driver's seat is shown; repeat on the passenger's seat.


8.

With the help of an assistant, carefully remove both front seats through the front door opening.


5. Rear Seat Cushion

1.

Remove the bolt (A) securing the rear seat cushion (B).



2.

While pushing down the rear seat cushion (A), pull the seat hook handles (B) to release the hooks (C).


3.

Remove the rear seat cushion.


6. Both Front Door Sill Trims


1.

Driver's side: Remove the cap (A) from the front door sill trim (B).


2.

Driver's side: Remove the opener lock cylinder (C).


3.

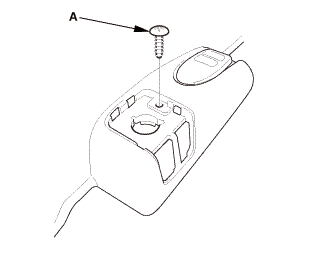

Driver's side: Remove the screw (A).


Driver's side


Passenger's side

4.

Remove both front door sill trims (A).


7. Both Kick Panels

Driver's side


Passenger's side


1.

Pull out both front door opening seals (A) as needed.


2.

Remove both kick panels (B).


8. Both Rear Door Sill Trims


1.

While pushing down on the rear seat cushion (A), pull the seat hook handle (B) to release the hook (C).


2.

While pulling up the seat cushion, remove the rear door sill trim (D).


3.

The left side is shown; repeat on the right side.


9. Front Door Opening Seal As Needed Both


1.

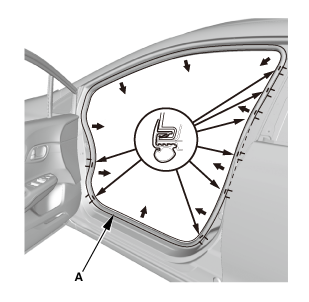

Remove front door opening seal (A) as needed.


2.

Repeat on the opposite side.


10. Both Rear Door Opening Seals as Needed


1.

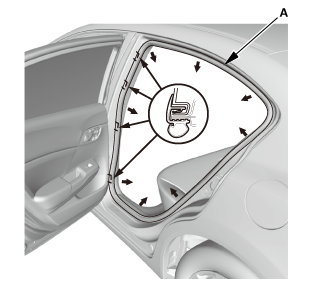

Remove the rear door opening seal (A) as needed.


2.

The left side is shown; repeat on the right side.


11. Both B-Pillar Lower Trims


1.

Slide the front seat forward fully.


2.

'13 Model (driver's side): Remove the B-pillar lower cover (A).


'12 Model


'13 Model


3.

Remove the B-pillar lower trim (A).


4.

'12 Model: The left side is shown; repeat on the right side.


12. Center Console Panel Assembly (Except '12M M/T)

1.

Detach the clips (A).



2.

Remove the center console panel (A).


3.

For some models: Disconnect the connector(s) (B).


13. Cup Holder Panel Assembly

1.

Remove the cup holder panel assembly (A).


14. Center Console


1.

Remove the bolts (A).


2.

Disconnect the connector (B).



3.

Remove the console box mat (A).


4.

Remove the bolts (B).


5.

Disconnect the connector (A).


6.

Remove the center console (A).


15. Steering Joint Cover

1.

Remove the steering joint cover (A).


16. Footrest


1.

For some models: Remove the lower clip (A) from the stud bolt (B) with a 6 mm hex socket wrench.


2.

For some models: Remove the upper clip (C) from the stud bolt (D) with a flat-tip screwdriver, then remove the footrest (E).


17. Floor Carpet - 4-Door (A/T)

1.

Remove the HVAC bracket (A).


2.

Disconnect the connectors (A) and the harness clips (B).


Without load ABS box


With load ABS box

3.

Disconnect the connectors (A), and detach the harness clips (B).



4.

Detach the clips (A).


5.

Release the hook and loop fastener (B).


6.

Cut the carpet (C) in the area (D) as shown.


7.

Pull out the seat harnesses (E), then remove the carpet.


8.

If necessary, remove the floor mat holder (A).


SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.


1. Floor Carpet - 4-Door (A/T)

1.

If necessary, install the floor mat holder (A).



2.

When installing the new carpet, cut the carpet in the area (A) as shown.


3.

Pass the seat harnesses (B), then install the carpet (C).


4.

Install the hook and loop fastener (D).


5.

Install the clips (E).


Without load ABS box


With load ABS box

6.

Connect the connectors (A), and install the harness clips (B).


7.

Connect the connectors (A) and the harness clips (B).


8.

Install the HVAC bracket (A).


2. Footrest


1.

For some models: Install the upper clip (A) to the stud bolt (B).


2.

For some models: Install the lower clip (C) to the stud bolt (D), then install the footrest (E).


3. Steering Joint Cover

1.

Install the steering joint cover (A) in the sequence shown.


4. Center Console

1.

Install the center console (A).


2.

Connect the connector (A).



3.

Install the bolts (A).


4.

Install the console box mat (B).



5.

Connect the connector (A).


6.

Install the bolts (B).


5. Cup Holder Panel Assembly

1.

Install the cup holder panel assembly (A).


6. Center Console Panel Assembly (Except '12M M/T)


1.

For some models: Connect the connector(s) (A).


2.

Install the center console panel (B).


3.

Install the clips (A).


7. Both B-Pillar Lower Trims

12 model


13 model


1.

Install the B-pillar lower trim (A).


2.

12 model: The left side is shown; repeat on the right side.


3.

13 model (driver's side): Install the B-pillar lower cover (A).


8. Both Rear Door Opening Seals as Needed


1.

Install the rear door opening seal (A).


2.

The left side is shown; repeat on the right side.


9. Front Door Opening Seal as Needed Both


1.

Install front door opening seal (A).


2.

Repeat on the opposite side.


10. Both Rear Door Sill Trims


1.

While pulling up the rear seat cushion (A), install the rear door sill trim (B).


2.

Push down the seat cushion, then install the hook (C) to the rear seat cushion clip (D).


3.

The left side is shown; repeat on the right side.


11. Both Kick Panels

Driver's side


Passenger's side


1.

Install both kick panels (A).


2.

Install both front door opening seals (B) as needed.


12. Both Front Door Sill Trims

Driver's side


Passenger's side

1.

Install both front door sill trims (A).


2.

Driver's side: Install the screw (A).



3.

Driver's side: Install the opener lock cylinder (A).


4.

Driver's side: Install the cap (B) to the front door sill trim (C).


13. Rear Seat Cushion

1.

Install the hooks (A) to the rear seat cushion clips (B).


2.

Install the bolt (A) securing the rear seat cushion (B).


14. Both Front Seats

Power seat


Manual seat


1.

With the help of an assistant, carefully install both front seats through the front door opening.


2.

Install the harness clips (A).


3.

Connect the connectors (B).


4.

The driver's seat is shown; repeat on the passenger's seat.


Front side

1n25mman


Rear side


5.

Install the seat mounting bolts (A).


NOTE: Tighten the bolts to the specified torque in the sequence shown.

Tighten the bolts by hand first, then tighten them to the specified torque.

Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, then slide it forward and tighten 3 and 4.


6.

The driver's seat is shown; repeat on the passenger's seat.



7.

Install both seat track end covers (A).


8.

The driver's seat is shown; repeat on the passenger's seat.


15. Left Front Seat Belt Lower Anchor

1.

Install the front seat belt lower anchor (A) to the front seat belt lap connector (B).


16. Both Front Seat Belt Lower Anchor Bolts

inmm


1.

Install the lower anchor bolt (A).


2.

The driver's seat is shown; repeat on the passenger's seat.



3.

Install the anchor cover (A).


4.

The driver's seat is shown; repeat on the passenger's seat.


17. Battery Terminal (SRS) - Reconnection

(o.2ao.sam.


NOTE: If the battery performs abnormally, test the battery.


1.

Clean the battery terminals.


2.

Connect the positive cable (A) to the battery.


NOTE: Always connect the positive side first.


3.

Connect the negative cable and the battery sensor (B) to the battery.


NOTE: To protect the battery sensor connector (C) from damage, do not hold it when installing the negative terminal.


4.

Apply multipurpose grease to the terminals to prevent corrosion.
