Honda Civic Service Manual: Rear Knuckle Removal and Installation (Natural Gas models)
| 1. |
Rear Knuckle/Hub Bearing Unit Exploded View |
mmm.knuckles.smmnndsunssassemblvunuuni0i25mmm-mmucarroimrv.zndum(maaumcmcooei1i
|
NOTE: Refer to the Exploded View as needed during this procedure.
|
|
|
1.
|
Raise the vehicle on a lift, and make sure it is securely supported.
|
|
|
|
|
1.
|
Remove the rear wheel.
|
|
|
|
Frequent inhalation of brake shoe dust, regardless of material composition,
could be hazardous to your health.
|
|
Avoid breathing dust particles.
|
|
|
|
Never use an air hose or brush to clean brake assemblies.
Use an OSHA-approved vacuum cleaner.
|
|
|
1.
|
Release the parking brake.
|
|
2.
|

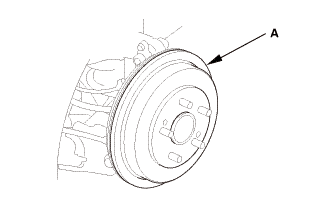

Remove the brake drum (A).
|
|
NOTE:
|
|
|
If necessary, turn the adjuster bolt (B) with
a flat-tip screwdriver until the shoes become loose.
|
|
|
|
If the brake drum is stuck to the hub bearing
unit, thread two 8 x 1.25 mm or 12 x 1.25 mm bolts
(C) into the brake drum to push it away from the
hub bearing unit. Turn each bolt 90 degrees at a
time to prevent the brake drum from binding.
|
|
|
|
|
|
|
1.
|
Remove the hub bearing unit (A).
|
|
2.
|
For some models: Remove the O-ring (B).
|
|
| 5. |
Rear Brake Shoe and Backing Plate Assembly |
|
|
Do not spill brake fluid on the vehicle; it may damage the paint. If
brake fluid gets on the paint, wash it off immediately with water.
|
1.
|
Disconnect the brake line (A) from the wheel cylinder (B).
|
|
NOTE: After removal, plug the ends of the hoses and the joints
to prevent spilling brake fluid.
|
|
2.
|
Remove the backing plate (C) with brake shoes assembly from the
knuckle.
|
|
| 6. |
Rear Wheel Speed Sensor and Brake Hose Mounting Bracket |
|
|
|
1.
|
Remove the wheel speed sensor (A).
|
|
NOTE: Do not disconnect the wheel speed sensor connector.
|
|
2.
|
Remove the brake hose mounting bracket (B).
|
|
| 7. |
Rear Trailing Arm - Jack Support |
|
|
1.
|
Place a floor jack under the trailing arm to support it.
|
|
NOTE: Do not place the jack against the plate section of the
lower arm. Be careful not to damage any suspension components.
|
|
| 8. |
Rear Upper Arm Knuckle Side - Disconnection |
|
 i2xi2inln
|
|
1.
|
Remove the flange bolt (A).
|
|
2.
|
Disconnect the upper arm (B) from the knuckle (C).
|
|
| 9. |
Rear Knuckle Upper Bracket |
|
|
|
1.
|
Remove the rear knuckle upper bracket (A).
|
|
| 10. |
Rear Trailing Arm Knuckle Side - Disconnection |
|
|
|
1.
|
Mark the cam positions of the adjusting bolt (A) with the frame.
|
|
2.
|
Mark the cam positions of the adjusting cam plate (B) with the
frame.
|
|
3.
|
Remove the self-locking nut (C), the adjusting cam plate, and
the adjusting bolt.
|
|
4.
|
Remove the flange bolt (D).
|
|
5.
|
Disconnect the knuckle from the trailing arm.
|
|
|
NOTE: Refer to the Exploded View as needed during this procedure.
|
| 1. |
Rear Trailing Arm Knuckle Side - Reconnection |
|
 ....n-m65....5n.m(m
|
|
1.
|
Connect the knuckle to the trailing arm.
|
|
2.
|
Loosely install the new flange bolt (A).
|
|
3.
|
Loosely install the new self-locking nut (B), the adjusting cam
plate (C), and the new adjusting bolt (D).
|
|
NOTE: Align the cam positions of the adjusting bolt and the adjusting
cam plate with the marked positions when tightening the self-locking
nut.
|
|
| 2. |
Rear Knuckle Upper Bracket |
|
|
|
1.
|
Install the rear knuckle upper bracket (A).
|
|
| 3. |
Rear Upper Arm Knuckle Side - Reconnection |
|
 125mmumngvum
|
|
1.
|
Connect the upper arm (A) to the knuckle (B).
|
|
2.
|
Loosely install the new flange bolt (C).
|
|
| 4. |
Rear Suspension All Mounting - Tighten Under Vehicle's Weight |
|
|
1.
|
Raise the rear suspension with a floor jack to load the vehicle
weight.
|
|
2.
|
Tighten all mounting hardware to the specified torque.
|
|
| 5. |
Rear Wheel Speed Sensor and Brake Hose Mounting Bracket |
|
|
|
1.
|
Install the brake hose mounting bracket (A).
|
|
2.
|
Install the wheel speed sensor (B).
|
|
| 6. |
Rear Brake Shoe and Backing Plate Assembly |
|
|
|
1.
|
Install the backing plate (A) with brake shoes assembly from
the knuckle.
|
|
2.
|
Connect the brake line (B) to the wheel cylinder (C).
|
|
|
|
|
1.
|
For some models: Install the new O-ring (A).
|
|
2.
|
Install the hub bearing unit (B).
|
|
|
|
Frequent inhalation of brake shoe dust, regardless of material composition,
could be hazardous to your health.
|
|
Avoid breathing dust particles.
|
|
|
|
Never use an air hose or brush to clean brake assemblies.
Use an OSHA-approved vacuum cleaner.
|
|
|
1.
|
Install the brake drum (A).
|
|
NOTE:
|
|
|
Before installing the brake drum, clean the mating
surfaces between the hub bearing unit and the inside
of the brake drum.
|
|
|
|
After installation, press the brake pedal several
times to make sure the brakes work and self adjust
the brake shoes. Do not drive the vehicle before
doing this procedure.
|
|
|
|
| 9. |
Brake System - Bleeding (Natural Gas Model) |
|
|
Do not spill brake fluid on the vehicle; it may damage the paint. If
brake fluid does contact the paint, wash it off immediately with water.
|
|
Do not reuse the drained fluid. Use only new Honda DOT
3 Brake Fluid from an unopened container. Using a non-Honda
brake fluid can cause corrosion and shorten the life of
the system.
|
|
|
|
Make sure no dirt or other foreign matter gets in the
brake fluid.
|
|
|
|
The reservoir connected to the master cylinder must be
at the MAX (upper) level mark at the start of the bleeding
procedure and checked after bleeding each wheel. Add fluid
as required.
|
|
|
|
There are three different methods used for bleeding brake
systems. The method shown here is the preferred manual method
for removing the air from the system. For pressure or vacuum
bleeding, refer to tool manufacturer's instructions included
with the tool.
|
|
|
1.
|
Make sure the brake fluid level in the reservoir tank (A) is
at the MAX (upper) level line (B).
|
|
|
 sznuzucz
|
|
2.
|
Start the bleeding at the driver's side of the front brake system.
|
|
NOTE: Bleed the calipers in the sequence shown.
|
|
|
Front
 x.sm.x1imm
Rear
|
|
3.
|
Attach a length of clear drain tube (A) to the bleed screw (B).
|
|
4.
|
Submerge the other end of the drain tube into a clear plastic
catch bottle of brake fluid (C).
|
|
5.
|
Have an assistant slowly pump the brake pedal several times then
apply steady continuous pressure.
|
|
6.
|
Loosen the bleed screw slowly to bleed the fluid into the plastic
catch bottle. The brake pedal will travel toward the floor as the
fluid is bled from the system.
|
|
7.
|
When the brake pedal reaches the floor, have the assistant hold
the pedal in that position, then tighten the bleed screw. The brake
pedal can now be released.
|
|
8.
|
Check and refill the master cylinder reservoir tank to the MAX
(upper) level line. Be sure to reinstall the master cylinder reservoir
cap.
|
|
9.
|
Repeat steps 5 thru 8 until the brake fluid in the clear drain
tube appears fresh and there are no air bubbles in the fluid.
|
|
10.
|
Repeat this procedure for each brake in the bleeding sequence.
|
|
|
 15mmumum
|
|
1.
|
Install the rear wheel.
|
|
NOTE: Before installing the wheel, clean the mating surfaces
between the brake disc or the brake drum and the inside of the wheel.
|
|
|
|
For proper inspection and adjustment of the wheel alignment,
do these checks:
|
|
1.
|
Release the parking brake to avoid an incorrect measurement.
|
|
2.
|
Make sure the suspension is not modified.
|
|
3.
|
Make sure the fuel tank is full, and that the tire repair kit,
the spare tire, the jack, and the tools are in place on the vehicle.
|
|
4.
|
Check the tire size and tire pressure according to tire information.
|
|
|
|
Use commercially available computerized four wheel alignment
equipment to measure wheel alignment (caster, camber, toe, and turning
angle). Follow the equipment manufacturer's instructions.
|
|
1.
|
Check the camber angle.
|
|
USA and Canada models
|
Camber angle:
|
| |
Except Si:
|
| |
|
Front:
|
0 ° 00 ’±30 ’
|
| |
|
Rear:
|
-0 ° 45 ’±45 ’
|
| |
Si (Without 18 inch wheel):
|
| |
|
Front:
|
-0 ° 04 ’±30 ’
|
| |
|
Rear:
|
-0 ° 52 ’±45 ’
|
| |
Si (With 18 inch wheel):
|
| |
|
Front:
|
-0 ° 18 ’±30 ’
|
| |
|
Rear:
|
-0 ° 45 ’±45 ’
|
|
(Maximum difference between the front right and
left side: 0 ° 45 ’)
|
|
|
|
|
Mexico models
|
Camber angle:
|
| |
Front:
|
0 ° 20 ’±30 ’
|
| |
Rear:
|
-0 ° 22 ’±45 ’
|
|
(Maximum difference between the front right and
left side: 0 ° 45 ’)
|
|
|
|
|
|
If the measurement is within specification, measure
the toe-in.
|
|
|
|
If the measurement for the front camber is not
within the specification, go to front camber adjustment.
|
|
|
|
If the measurement for the rear camber is not
within the specification, check for bent or damaged
suspension components.
|
|
|
|
| 13. |
Rear Toe - Inspection |
|
|
Use commercially available computerized four wheel alignment
equipment to measure wheel alignment (caster, camber, toe, and turning
angle). Follow the equipment manufacturer's instructions.
|
|
1.
|
Release the parking brake to avoid an incorrect measurement.
|
|
2.
|
Check the toe.
|
|
Rear toe-in: 2+2-1 mm (0.08+0.08-0.04 in)
|
|
|
If adjustment is required, go to the rear toe
adjustment.
|
|
|
|
If no adjustment is required, go to front toe
inspection.
|
|
|
|
4181C3 LEFT
4181C4 RIGHT
4181C2 BOTH
1.
Rear Knuckle/Hub Bearing Unit Exploded View
Exploded View
knucklemmu....lassmuandsrusuforandlarumrmconauand ...
