Honda Civic Service Manual: Passenger's Outer Vent Removal and Installation

Honda Civic Service Manual / HVAC / Outer Vent Removal and Installation / Passenger's Outer Vent Removal and Installation

8411J2 PASSENGER SIDE

Removal

1. Front Door Opening Seal As Needed - Passenger's Side

1.

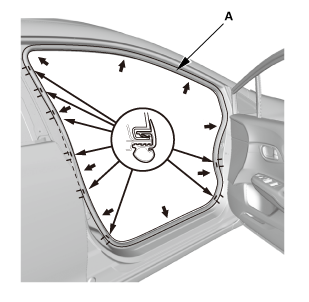

Remove the front door opening seal (A) as needed.


2. Dashboard Side Cover - Passenger's Side

1.

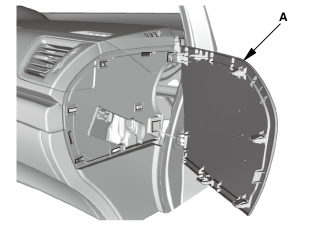

Remove the dashboard side cover (A).


3. Passenger's Outer Vent

1.

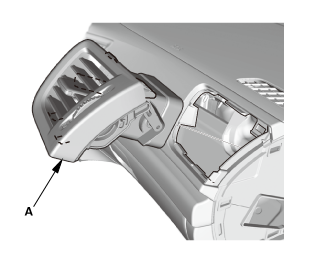

Remove the passenger's outer vent (A).


Installation

1. Passenger's Outer Vent

1.

Install the passenger's outer vent (A).


2. Dashboard Side Cover - Passenger's Side

1.

Install the dashboard side cover (A).


3. Front Door Opening Seal As Needed - Passenger's Side

1.

Install the front door opening seal (A).
